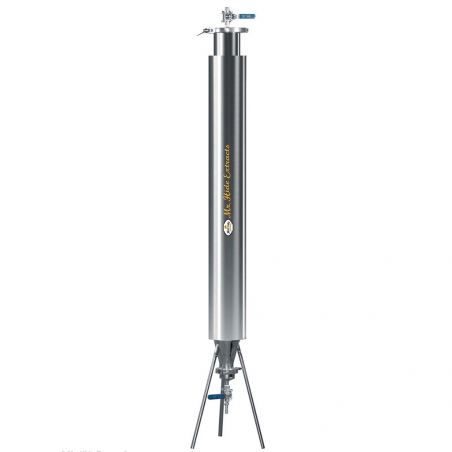

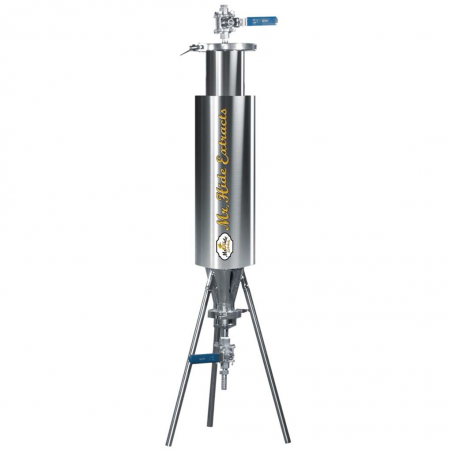

Resin Extraction Tube With Chamber Mr. Hyde

Easy to use and delivers excellent results.
Now with the added benefit of keeping your material fresh for longer, thanks to the double jacket for ice or dry ice (CHAMBER). A quick and simple way to process your plant material.

What is the Semi-Closed Extractor with Chamber 100G/C?

The Semi-Closed Extractor with Chamber 100G/C is an easy-to-use machine that delivers excellent results for medium and small-scale BHO extraction.

It is designed to process plant material that is ultimately transformed into BHO through the extraction process.

Lightweight yet robust, it is made entirely of food-grade 304 and 316 stainless steel.

Features of the Semi-Closed Extractor with Chamber 100G/C

• Includes 2” gasket and mesh gasket.

• Lightweight and robust, made entirely of food-grade 304 and 316 stainless steel.

• Capacity: 100 g dry (or 185 g fresh - tightly packed).

• Equipped with 2 safety valves for gas inlet and outlet.

• Detachable legs for easier column handling and transport.

• Includes clamp filter / 150 mesh 316 stainless steel gasket.

• 1 clamp gasket.

• 2 clamp fasteners.

• Option to assemble multiple columns for higher capacity.

• Size: 50 mm diameter x 650 mm.

• Packaging: 100x15x15 cm, Weight: 8 kg.

Features of the Semi-Closed Extractor with Chamber 250G/C

• Includes DIN 80 gasket and mesh gasket.

• Capacity: 250 g dry (or 520 g fresh - tightly packed).

• Equipped with 2 safety valves for gas inlet and outlet.

• Detachable legs for easier column handling and transport.

• Includes clamp filter / 150 mesh 316 stainless steel gasket.

• 1 clamp gasket.

• 2 clamp fasteners.

• Option to assemble multiple columns for higher capacity.

• Size: 84 mm diameter x 450 mm + cone.

• Packaging: 100x15x15 cm, Weight: 10 kg.

Features of the Semi-Closed Extractor with Chamber 550G/C

• Includes 4” gasket and mesh gasket.

• Capacity: 550 g dry (or 850 g fresh - tightly packed).

• Equipped with 2 safety valves for gas inlet and outlet.

• Detachable legs for easier column handling and transport.

• Includes clamp filter / 150 mesh 316 stainless steel gasket.

• 1 clamp gasket.

• 2 clamp fasteners.

• Option to assemble multiple columns for higher capacity.

• Size: 104 mm diameter x 600 mm + cone.

• Packaging: 100x20x20 cm, Weight: 13 kg.

Features of the Semi-Closed Extractor with Chamber 1100G/C

• Includes 4” gasket and mesh gasket.

• Capacity: 1,000 g dry (or 1,600 g fresh - tightly packed).

• Equipped with 2 safety valves for gas inlet and outlet.

• Detachable legs for easier column handling and transport.

• Includes clamp filter / 150 mesh 316 stainless steel gasket.

• 1 clamp gasket.

• 2 clamp fasteners.

• Option to assemble multiple columns for higher capacity.

• Size: 104 mm diameter x 1,275 mm + cone.

• Packaging: 130x20x20 cm, Weight: 19 kg.
