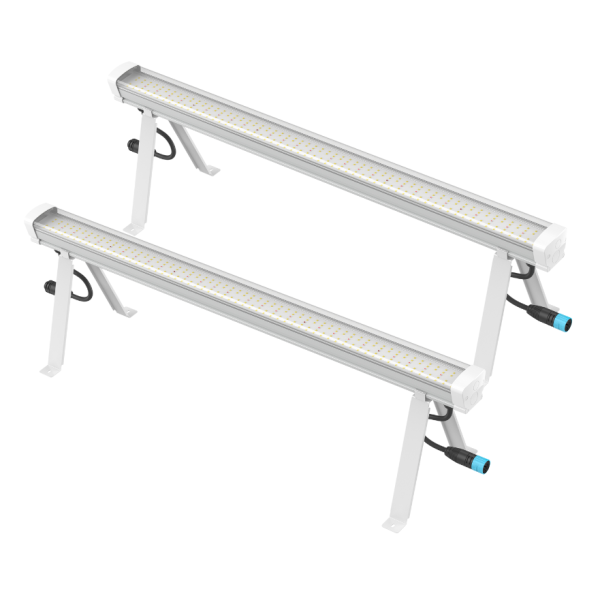

LED 120W Under Canopy Solux

The UNDER CANOPY LED is a specialized lighting device for horticultural environments and agricultural projects, designed with high energy efficiency and ease of installation. With a robust and versatile design, this system optimizes lighting in controlled spaces under specific conditions.

2 UNITS PER BOX.

Main Technical Specifications:

Nominal Power: 120 W (±5%).

System Efficiency: 2.7 µmol/J @220V.

Photon Output (PPF): 324 µmol/s.

Current Range:

1.2A @ 100V

0.43A @ 277V

Heat Generation: 409.2 BTU/h.

Input Voltage: 100-240 VAC / 100-277 VAC, 50-60 Hz.

Insulation Class: Class I.

Power Factor: >0.9.

Dimming: 0-10V.

IP rating: IP65, dust and water proof.

Dimensions and Weight:

Dimensions: 1148 x 82 x 72 mm.

Operating Conditions:

Operating Temperature: 0°C to 40°C (32°F to 104°F), with a maximum relative humidity of 95%.

Storage Temperature: -40°C to 70°C (-40°F to 158°F), with a maximum relative humidity of 85%.

Warranty: 3 years.

Design and Materials:

Housing: Made of aluminum for high durability and efficient thermal dissipation.

Optics: High transmission polycarbonate material.

Radiation Angle: 120° for optimal coverage.

Coverage Capacities:

Coverage Area: 0.9 m x 1.2 m (3' x 4').

Recommended Height: 45 cm (18”) from lamp to canopy.

Luminous Efficiency (PPFD test at 45 cm):

Average: 175 µmol/m²/s.

Maximum: 347 µmol/m²/s.

Minimum: 82 µmol/m²/s.

Additional Features:

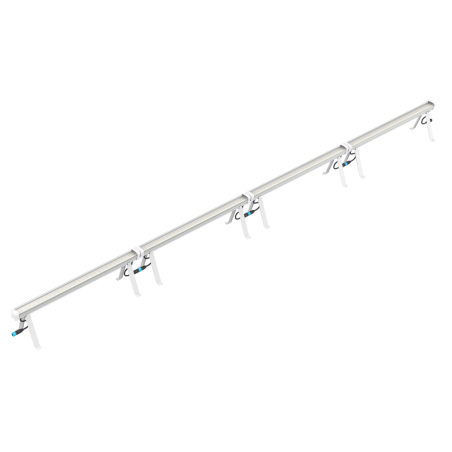

Chain Connection:

7 units at 120V.

15 units at 240V.

17 units at 277V.

Accessories Included:

2 floor fixing supports 25 cm high.

Interconnecting clips.

EU standard plug.

Passive Cooling: No fans, reducing noise and maintenance.
