EC Extractor with Built-in Filter (100/125/150) Cyclone

The Cyclone Ventilation System is an all-in-one solution for climate optimization and odor control in indoor grow rooms and greenhouses. Combining a high-efficiency brushless EC motor with a premium activated carbon filter, it regulates temperature and humidity while removing odors and airborne particles.

Its lightweight ABS fan blades and advanced motor technology ensure a powerful airflow with quiet and stable operation, making it perfect for discreet environments and controlled spaces.

Key Features

• Variable-frequency EC motor: superior energy efficiency and precise speed control

• Quiet operation: noise level <32 dB

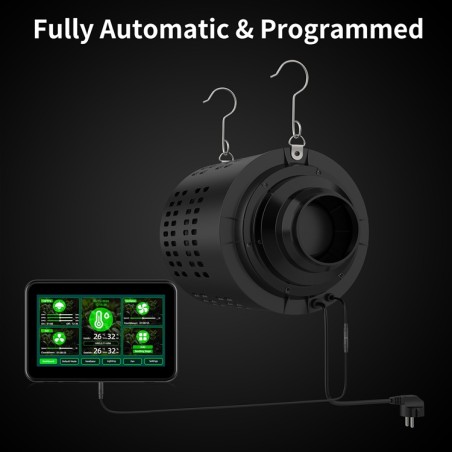

• Smart control: compatible with speed controllers or automated systems with temperature and humidity probes

• Easy maintenance: removable and replaceable carbon filter cartridge

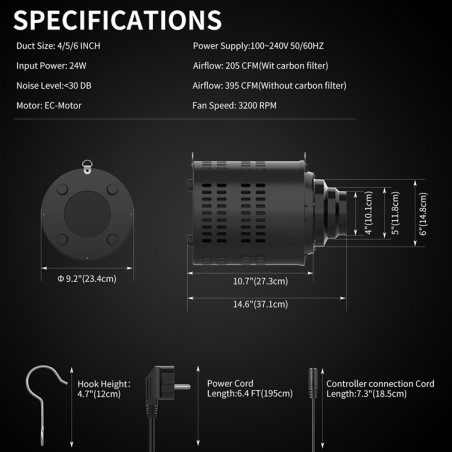

Technical Specifications

• Maximum airflow: 550 m³/h (395 CFM)

• Motor speed: 3300 RPM

• Power consumption: 24 W

• Voltage: 100-240V AC, 50/60Hz

• Dimensions: 234 x 234 x 271 mm

• Duct connection: compatible with 4" / 100mm, 125mm or 150mm (depending on configuration)

Maintenance and Usage Recommendations

To ensure optimal performance of the activated carbon filter (Model CM-CF-1020):

• Replace every 3 months (every 2 months in high-contaminant environments)

• Expose to sunlight for approx. 10 hours quarterly to regenerate the carbon
