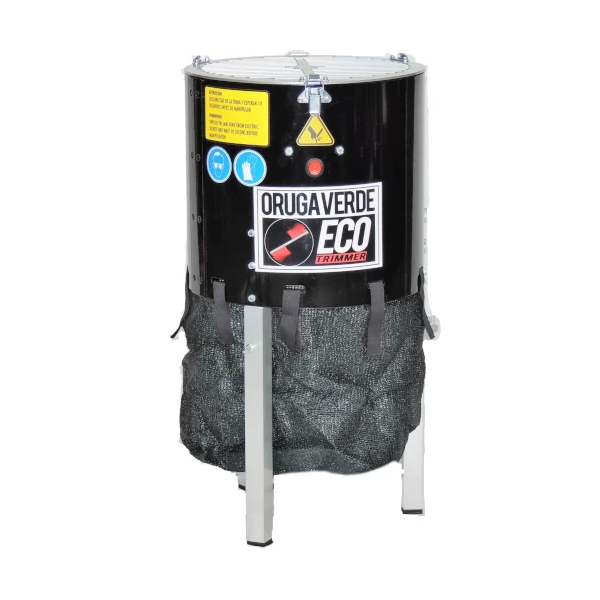

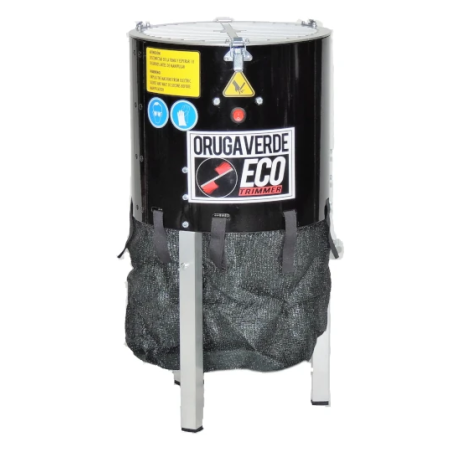

Ecotrimmer OrugaVerde Trimmer

Electric Machine for Manicuring or Trimming Leaves in Small-Scale Home Grows

Single cutting mode with a 26.65 cm diameter blade and a 10 mm gauge grid. Removable legs and transport bag included. Quiet, fast, and safe.

SPECIFICATIONS:

• Weight: 8 kg (10 kg with packaging)

• Height: 58 cm (with legs attached)

• Length: 30 cm

• Width: 30 cm

• Blade Length: 26.5 cm

• Grid Gauge: 10 mm

• Noise Level: 30 dB

• Electric Consumption: 220V AC / 100W

Eco-Trimmer Instruction Manual

Application
This machine is intended for trimming various types of fruits and plants.

Package Contents
The machine consists of three main parts: frame, grids, and motors.

• Remove all components from the packaging.

• Discard all remaining packaging materials and any transport protections (if applicable).

• Ensure all components are included.

• Check for any damage that may have occurred during transport.

• Includes power cable and accessories.

⚠ Warning: Packaging materials are not toys. Keep away from children due to choking hazard.
If any parts are missing or damaged, contact the seller.

Safety Instructions

⚠ Important: Read all safety warnings and instructions.

Failure to follow these guidelines can result in electric shock, fire, or serious personal injury. Keep these instructions for future reference.

Work Area

• Keep your work area clean and well-lit. Cluttered or dark areas increase the risk of accidents.

• Do not operate electric machines in explosive environments or in the presence of flammable liquids, gases, or dust.

• Keep children and bystanders away while using the machine.

Electrical Safety

• The machine’s plug must fit the outlet—do not modify the plug in any way.

• Using unmodified plugs reduces the risk of electric shock.

• Avoid exposure to rain or moisture.

• Water entering an electric motor increases the risk of electric shock.

• Do not damage the cable or use it to carry, pull, or unplug the machine.

• Keep the power cord away from heat, oil, sharp edges, or moving parts.

• Do not operate the machine if the power switch is faulty.

• Always unplug the machine before making adjustments or cleaning it.

• Store the machine out of reach of children when not in use.

• Never allow untrained individuals to operate the machine.

Maintenance

• Inspect moving parts for alignment and damage.

• If damaged, do not use the machine until it is repaired.

• Keep cutting tools clean and sharp for optimal performance.

• Clean and maintain the blade with care—misalignment may occur if handled roughly.

The machine includes a control panel and built-in safety features such as top cover sensors that stop the machine when opened and prevent it from starting with the cover open.

User Safety

• Stay alert and focused. Do not operate the machine when tired or under the influence of drugs, alcohol, or medication.

• Always wear protective gear: safety glasses and gloves are mandatory.

• Avoid accidental starts: ensure the power switch is off before plugging in.

• Wear fitted clothing. Do not wear loose clothing, jewelry, or accessories.

• Keep hair and clothing away from moving blades.

• ⚠ Warning: Never insert metal or other objects into the machine. This can cause severe injury or damage.

The machine is exclusively designed for leaf trimming. Any other use may cause injury or machine damage.

Do not remove or replace the grid while the machine is running. Always unplug and wait at least 10 seconds to ensure blades have fully stopped.

Never touch the mixing accessory while the machine is operating.

Do not handle the collection bag or any accessory while the machine is plugged in.

First Use Instructions

This machine features a frame with a top opening that includes a slotted grid. Below the grid is a rotating blade mounted to a lower support and powered by a motor. This setup is designed to cut leaves inserted through the grid and separate them from the fruits and branches.

Leaves are drawn inside by suction and fall into a mesh bag.

Warranty

This machine includes a 2-year warranty from the date of purchase.

Cleaning & Maintenance

⚠ CAUTION: Always unplug the machine before performing any maintenance.

• Keep the ventilation openings clean to prevent motor overheating.

• Clean the machine with a soft cloth, preferably after each use.

• If heavily soiled, use a damp cloth with degreaser.

• Check that power cables are undamaged before each use.

• Ensure blades do not rub against the grid. Adjust blade height if necessary.

• Clean blades gently to avoid misalignment.

• If not used for a long period, check that all components are in good working condition.

Monthly Checks:

• Inspect the blades for damage or misalignment.

• Check control panel functionality, including start/stop switch.

• Ensure fruit separator lids are securely locked during operation.

Annual Checks:

• Confirm all safety pictograms on the machine are visible and in good condition, as described in the instruction manual.

Environmental Notice

Do not dispose of the machine as household waste.
When replacing the unit, dispose of it in an environmentally responsible manner.
Electric machine waste must be recycled where facilities exist (consult local authorities).

ECO-TRIMMER Assembly

Included in the package:

• Eco-Trimmer machine

• Extendable legs with wing screws

• Collection bag

Insert the legs into the base and adjust to the desired height.
If the grid needs to be removed for cleaning or maintenance, unscrew it carefully.
⚠ Important: Never disassemble the machine while connected to the power supply.

Once plugged in, use the switch to turn the machine on.
