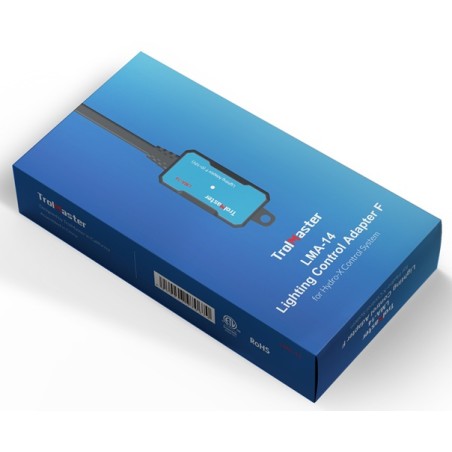

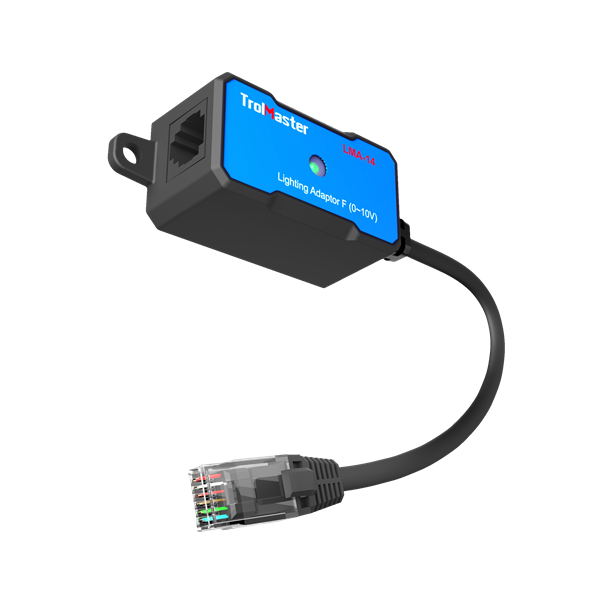

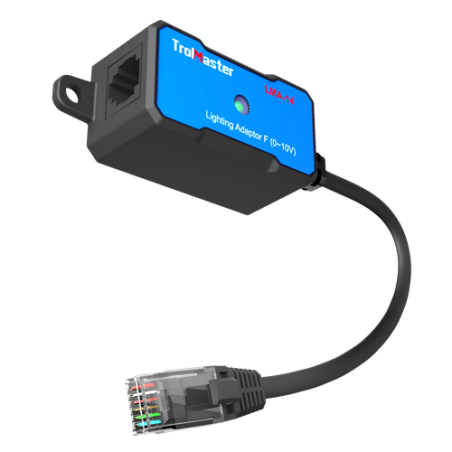

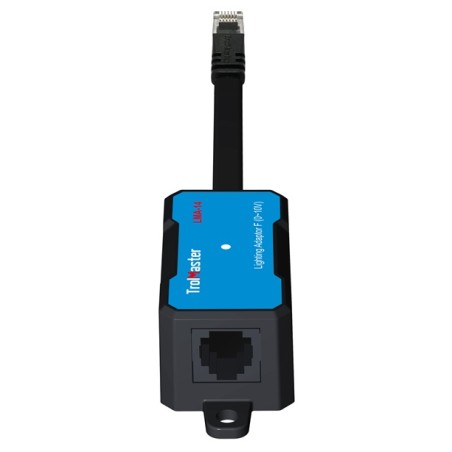

LMA-14 Lighting Adapter Trolmaster

The LMA-14 lighting adapter is specifically designed for fixtures using 0-10V low-voltage control protocol. It enables the Hydro-X system to control both HID and LED grow lights efficiently.

It converts the digital signal from Hydro-X into an analog 0-10V signal, ensuring stable and precise light intensity control.

✅ Compatibility

💡 HID

• Gavita

• Nanolux

• Luxx

• Growers Choice

• Illuminar

• PL

🌱 LED

• Fluence

• Next Light

• Photobio

🔌 Control Capacity

• Up to 40 HID fixtures per LMA-14

• Up to 24 LED fixtures per LMA-14

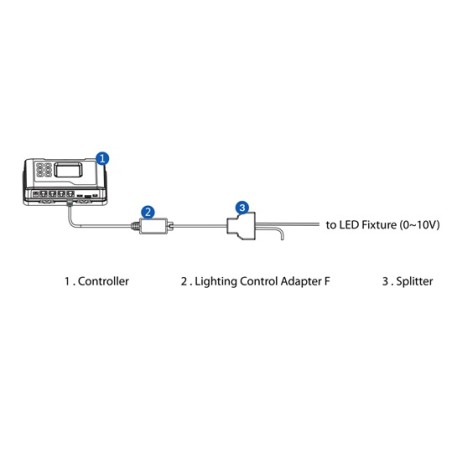

• Multiple LMA-14 units can be connected using the SPH-1 Splitter Hub

⚠️ Important Notes

• With Fluence Spyder 2x/2i @ 277V → maximum 12 LEDs per LMA-14

• With Aelius LEDs ≥ 277V → maximum 12 LEDs per LMA-14

🚀 Key Features

• Converts digital signal to analog 0-10V

• Seamless RJ12 connection to Hydro-X

• LED power indicator

• Plug & Play installation

• Scalable lighting control

⚙️ Technical Specifications

• Input Voltage: 12V

• Output Voltage: 0-10V

• Maximum Current: 0.05A

• Working Environment:

  • Temperature: 32-122°F (0-50°C)

  • Humidity ≤ 90%

• Package Dimensions: 156mm × 83mm × 30mm

• Gross Weight: 60g
