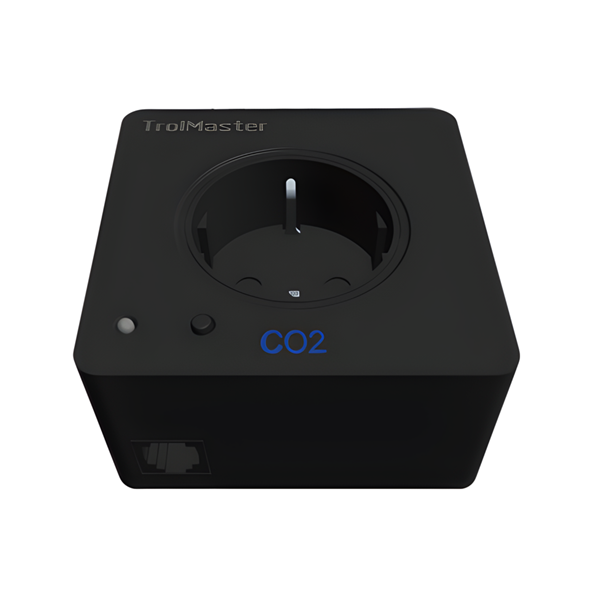

CO2 Station DSC-2 Trolmaster

The DSC-1 allows you to easily connect and control supplemental CO2 devices or CO2 exhaust systems via the Hydro-X system. Compatible with any device operating at 100-240 VAC, 50/60 Hz up to 10A, this module provides safe and precise CO2 management for professional grow environments.

💡 LED Status Indicators

• Fast blinking green: Module is not addressed to the controller or connection is poor. Press the button to link.

• Slow blinking green: Module is addressed, connected, and currently OFF.

• Solid green: Module is addressed, connected, and ON.

• Blinking red: Module is overloaded. Unplug to reset.

• Manual override: Press and hold the DSC-1 button to turn the module ON/OFF manually.

Includes LED power indicator, 3-prong plug, and RJ12 socket for Hydro-X integration.

🚀 Key Features

• Control of supplemental CO2 devices and exhaust systems

• Global voltage standard: 100-240 VAC, 50/60 Hz

• Maximum current: 10A

• Plug & Play installation

• Addressable and controllable via Hydro-X

• Overload protection with LED indicator

• Optional manual override

📦 Package Contents

• 1 x DSC-1 Device Station

• 1 x 16ft RJ12 Cable

• 1 x 4ft RJ12 Cable

• 1 x RJ12 T-Splitter

⚙️ Technical Specifications

• Input Voltage: 100~240 VAC, 50/60Hz

• Output Voltage: 100~240 VAC, 50/60Hz

• Maximum Output Current: 10A

• Working Temperature: 32-122°F (0-50°C)

• Working Humidity: ≤ 90%

• Package Dimensions: 85mm × 80mm × 90mm

• Gross Weight: 0.34 kg

💡 Professional Advantages

• Precise and safe control of supplemental CO2

• Compatible with multiple CO2 generation and exhaust systems

• Full integration with Hydro-X for automated environment management

• Manual override option directly on the module
