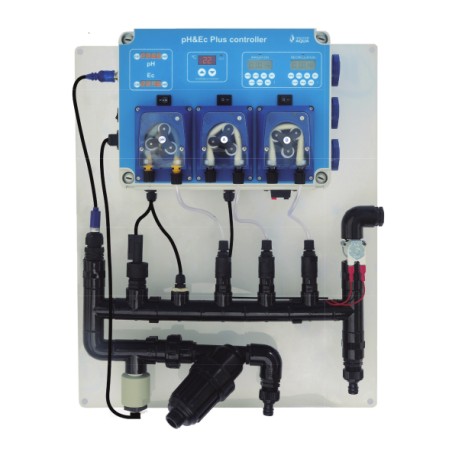

PH & EC Nutrient Controller Plus Controller Prosystem Aqua
€1,953.00
€1,660.05
Save 15%
Tax included
Product made to order, delivery time 7-15 days.
The Basic Nutrient Controller is a system that automatically controls EC (fertiliser) and pH levels, ideal for hydroponic growing.
This controller allows you to continuously measure and automatically dose your liquid fertilisers, at the same time as it regulates the pH in your tanks.
A very simple, accurate and complete system, suitable for any irrigation system or application.
How to use the basic nutrient controller

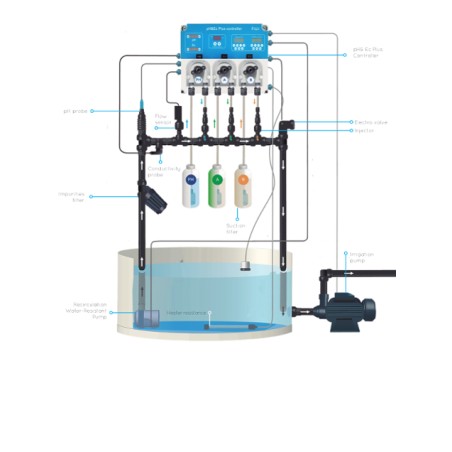

The basic nutrient controller continuously measures pH and EC. Automatically and according to the reading of both parameters, it doses the fertilisers that are added to the irrigation water by means of a peristaltic pump system.
Dosing rate of the basic nutrient controller
The dosing flow rate of each of the pumps is adjustable from 0 to 400 cc/h and from 0 to 7 lt/h independently. The equipment is prepared for dosing in tanks for the preparation of mixtures or for the homogenisation of parameters.
The basic nutrient controller has 2 pumps for nutrients (A and B) and a pH regulation pump.
Technical characteristics of the basic nutrient controller
- Peristaltic pumps with adjustable flow rate from 0 to 400 cc/h.
- Automatic fertilisation control by conductivity
- Automatic pH control
- pH measurement range from 0 to 14
- Accuracy error of both measurements: 1%.
- pH probe included: PH probe for automatic nutrient controller (672147)
- Conductivity probe with ATC included
- Quick connections between equipment and probes
- Independent ON/OFF switches per pump
- pH control after fertiliser dosing
- Flow sensor for recirculation included: Flow Sensor for Nutrient & Automatics controllers (672033)
- Power supply: 230 V and 50/60 Hz
- Suction and delivery connection kit included for each pump
- Maximum dosing pressure 1.5

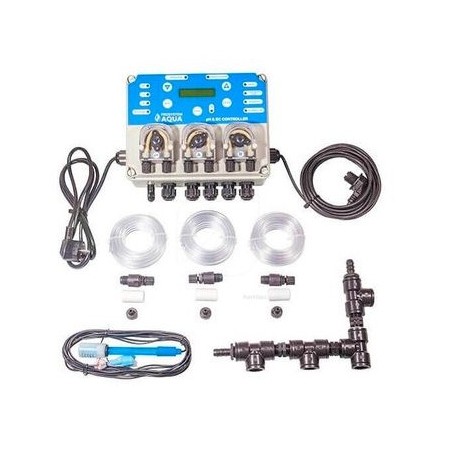

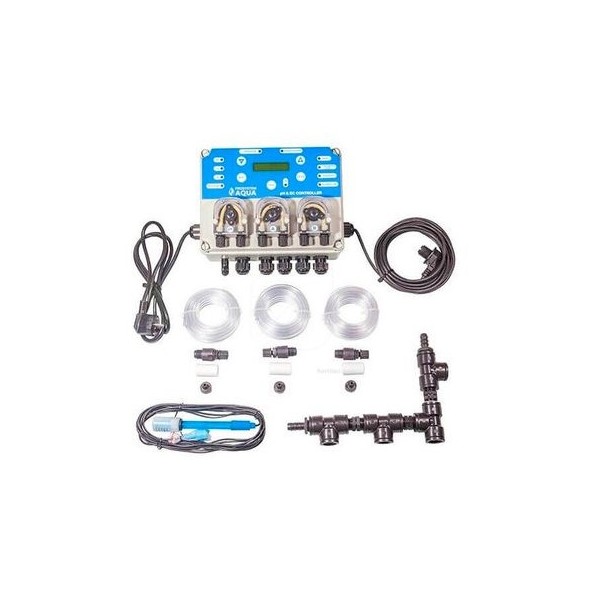

What parts are included in the controller?
The Controller has different elements that must be assembled according to the instructions for use that are enclosed with the device. The elements that you will find are:
- pH & EC controller ProSystemAqua
- pH probe
- EC probe
- pH probe holder
- EC connector cable
- Pressure and suction hoses
- Injectors
- Supports
- Plugs and screws for fastening
- 1 plastic manifold
- Teflon roll
