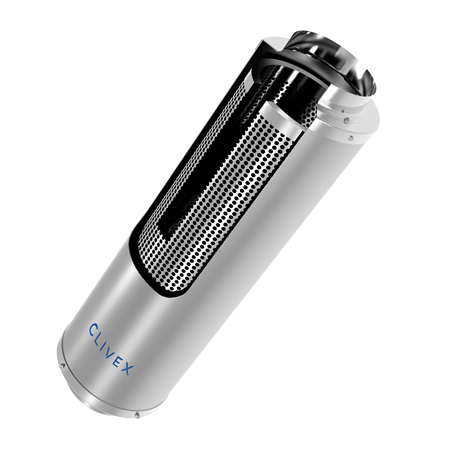

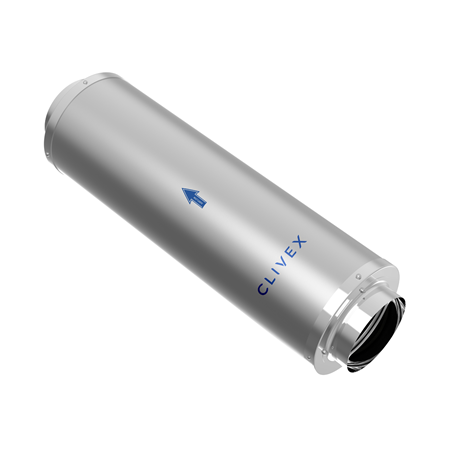

Clivex In-Line Carbon Filters

Professional Odor Control for High-Airflow Ventilation Systems

The Clivex In-Line Carbon Filters 250 mm are engineered to deliver high-performance odor control for demanding indoor cultivation environments, where ventilation efficiency and filtration reliability are essential.

Using thermally activated high-density carbon combined with an in-line filtration design, these filters ensure consistent and effective odor removal even in high-capacity airflow systems, with models supporting up to 3,300 m³/h.

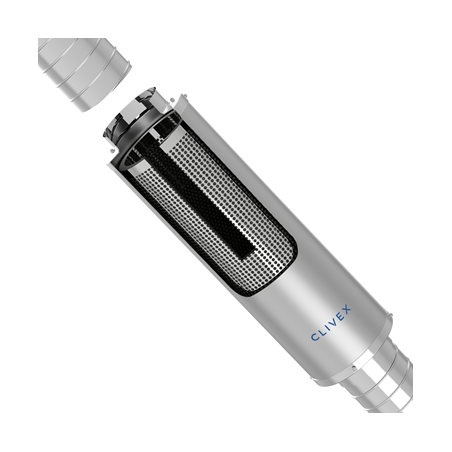

Their in-line architecture allows them to be installed directly inside ventilation ducting, providing 100% air filtration in both intake and exhaust airflow directions.

In-Line Architecture – Filtration Exactly Where It’s Needed

Unlike traditional carbon filters that must be installed directly on extraction fans, Clivex In-Line filters can be integrated anywhere along the ventilation duct.

This allows growers to:

• Install filtration inside or outside the grow area

• Integrate filtration within intake or exhaust systems

• Filter air before its final exit point

• Adapt to space-constrained installations

This flexibility makes them ideal for technical grow rooms, indoor tents, and complex ventilation setups where a conventional carbon filter cannot be mounted directly on the extractor.

Thermally Activated Carbon – High Adsorption Capacity

At the core of the system is thermally activated carbon, a process that increases pore density and dramatically enhances the material’s capacity to adsorb volatile organic compounds (VOCs).

Key advantages:

• High-density carbon bed

• Large adsorption surface area

• Effective neutralization of strong plant odors

• Stable performance over extended operation periods

The optimized carbon bed thickness increases air contact time, ensuring complete odor neutralization even in high airflow environments.

Ideal for Complex Ventilation Installations

One of the major advantages of the Clivex In-Line 250 mm filters is their adaptability in professional systems.

They allow:

• Multiple air ducts to connect to a single filtration point

• Odor removal from several grow zones simultaneously

• Integration with air-cooled reflector systems

• Simplified ventilation layouts with centralized filtration

This results in lower installation costs and simpler system management while maintaining reliable odor control.

Long Service Life and Stable Performance

Clivex filters are designed for long operational lifespan and consistent filtration performance even under intensive indoor cultivation conditions.

• Estimated lifespan: 14–18 months

• Continuous odor filtration

• Durable construction for long-term use

A reliable solution for maintaining odor-free indoor cultivation environments.

Available Models

• Clivex In-Line Carbon Filter 250 mm — 1000–1100 m³/h

• Clivex In-Line Carbon Filter 250 mm — 1500–1650 m³/h

• Clivex In-Line Carbon Filter 250 mm — 2500–2750 m³/h

• Clivex In-Line Carbon Filter 250 mm — 3000–3300 m³/h

This range allows growers to adapt the filtration capacity to medium grow spaces or large-scale professional installations.
